You’re certainly in good company. The ASM Group is an innovative, world class professional organisation which exists to promote best value in your business by turning your waste into useful products.
Our ‘ecoHERO’ range converts organic waste into useful resources, such as fertiliser, animal feed and raw energy for energy plants and biomass systems.
Not only does the ‘ecoHERO’ divert waste away from landfill sites, but it will help you add value to your business both through the sale of your fertiliser as well as the savings to your waste disposal budget. Further still, we will offer to buy the fertiliser from you, giving you an immediate return on your investment.
Our digestion process requires no additional enzymes or chemicals, and the only by-product produced is water vapour and C0 2 .The system is extremely user friendly and human intervention is minimal due to the high level of machine automation. 24 hour batch processing means that all you do is feed the waste at any time and collect the output.
Every client we have worked for has required a unique solution. Quick fix ‘off the shelf’ products just do not take this into account. Our hard earned expertise will ensure we will work out the correct solution to fit your needs.
Any size : No matter the volume of your output we have the solution for you. Our systems process daily from as little as 250kg up to 50 tonnes. Further still, our modular design ensures that increasing system capacity can be cost effectively managed.
Superior Design : Our systems are manufactured using only the finest materials and workmanship. We use grade 304 and 316 stainless steel, and design and manufacture all our systems in the UK using the most reputable suppliers and engineers. You can rest easy knowing our system’s build quality will provide you both reliability and longevity.
Typical Applications : Agriculture and Farming, Commercial Kitchens, Restaurants, Airlines Hotels, Cruise Ships, Resorts, Supermarkets & Shopping Complexes, Universities, Colleges, Schools & Institutions, Vegetable and Fruit Wholesalers, Mining and Fishing Industries, Food Manufacturers, Zoos & Leisure Complexes, Abattoirs, Local Municipalities, Sewage, Digestate and Sludge Treatment Facilities.
Converts organic waste into stable, non-toxic fertiliser pellets in just 3 days Saves you up to 80% on landfill costs and up to 85% on carbon emissions Modular in design, ensures greater capacity in the future with minimal cost Quiet, sealed, no smells, safe, hygienic, compact Revolutionary process - no expensive enzymes or chemical additives to accelerate the process Continuous feed cycle 24/7, no minimum volume required to ensure optimum function Full guarantee, maintenance contract, and unbeatable after sales service Economical to run, simple to operate, minimal maintenance

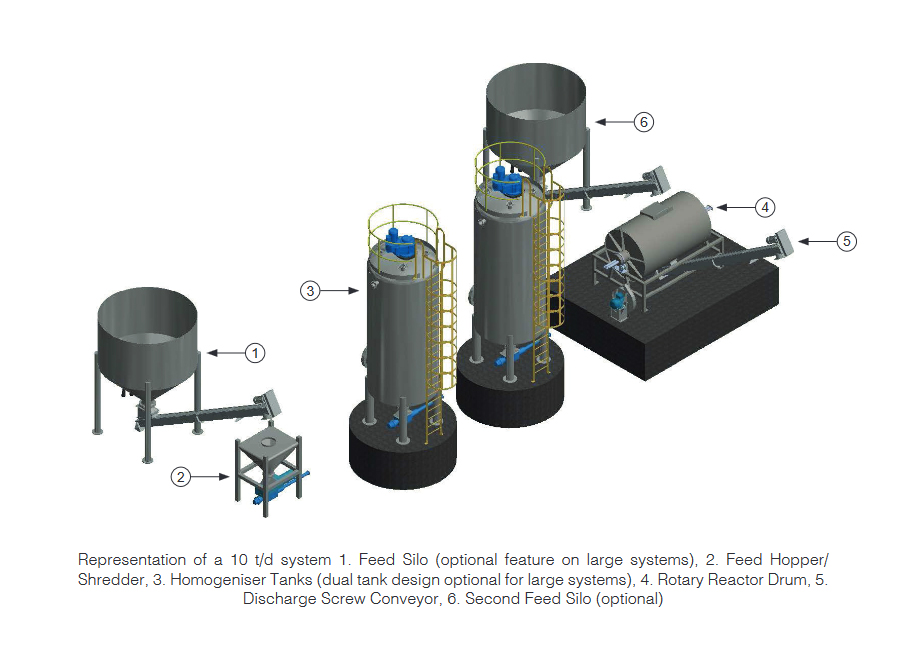

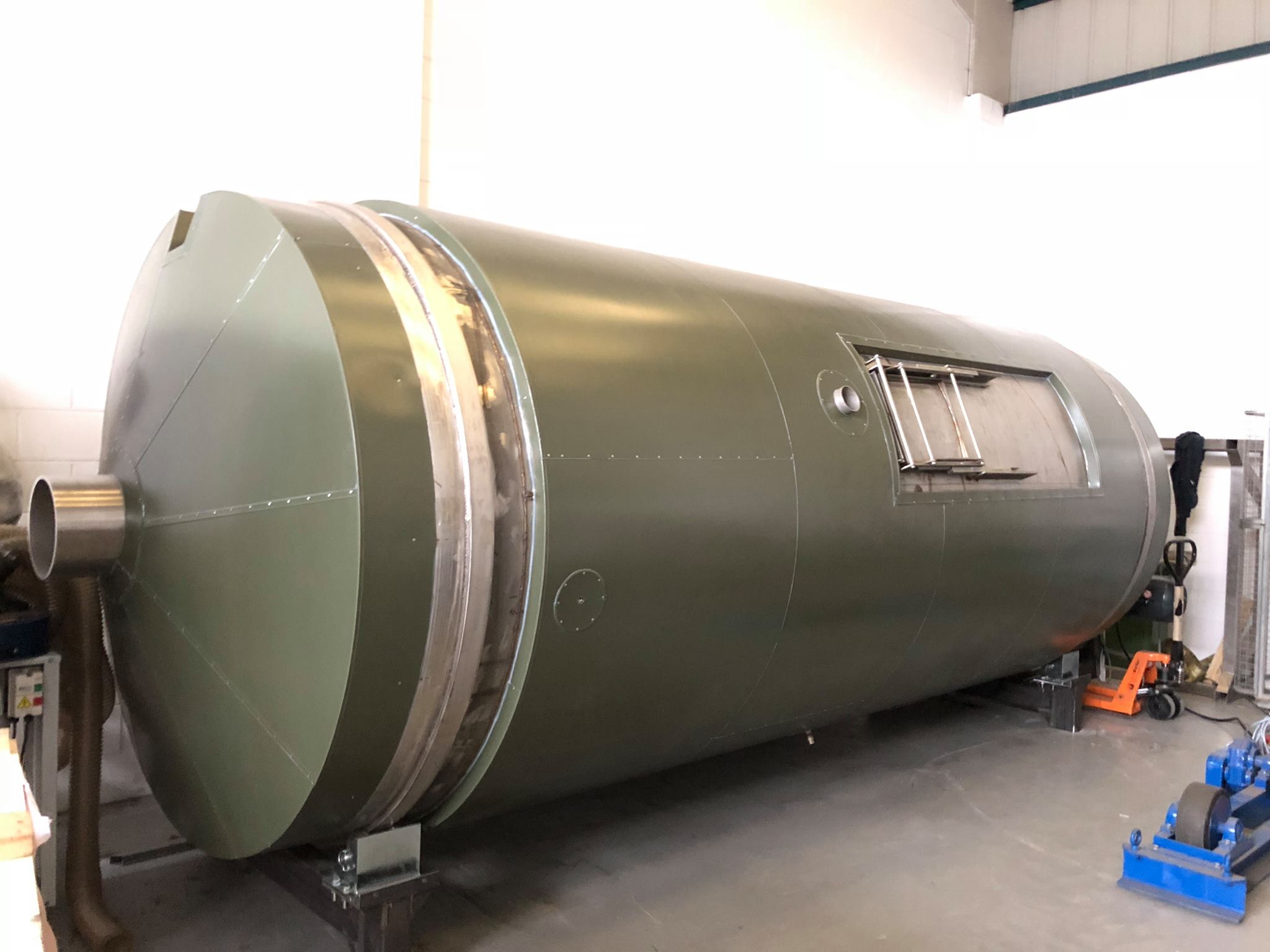

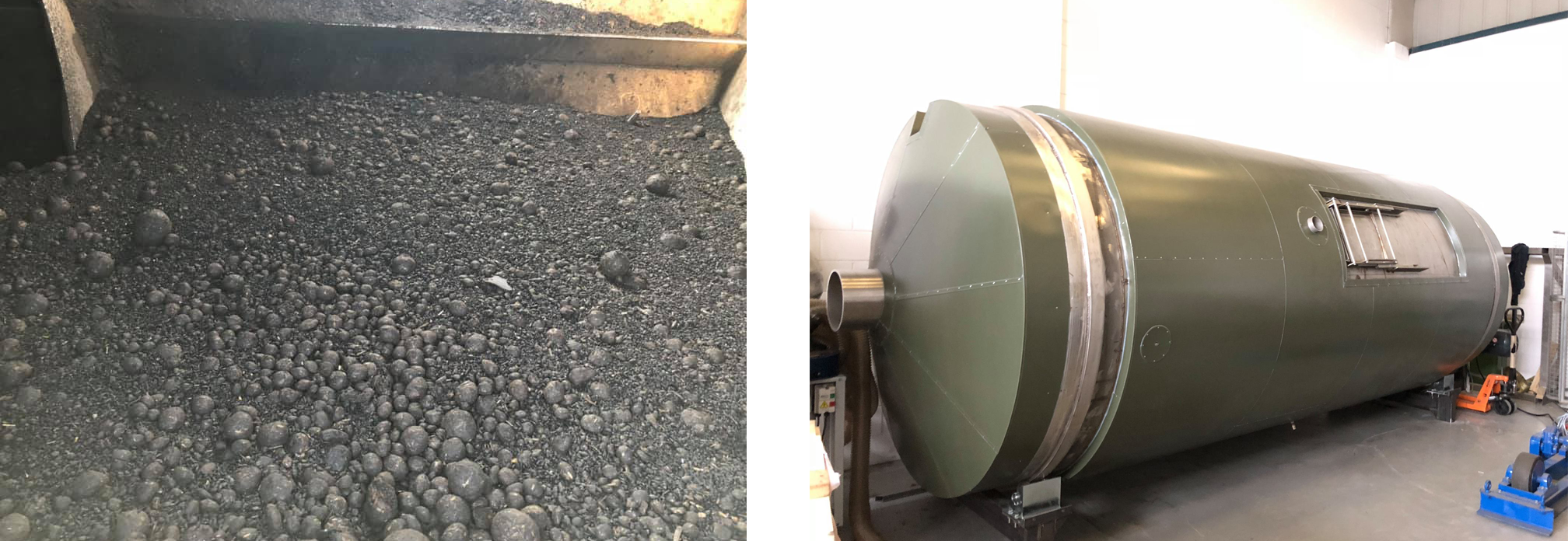

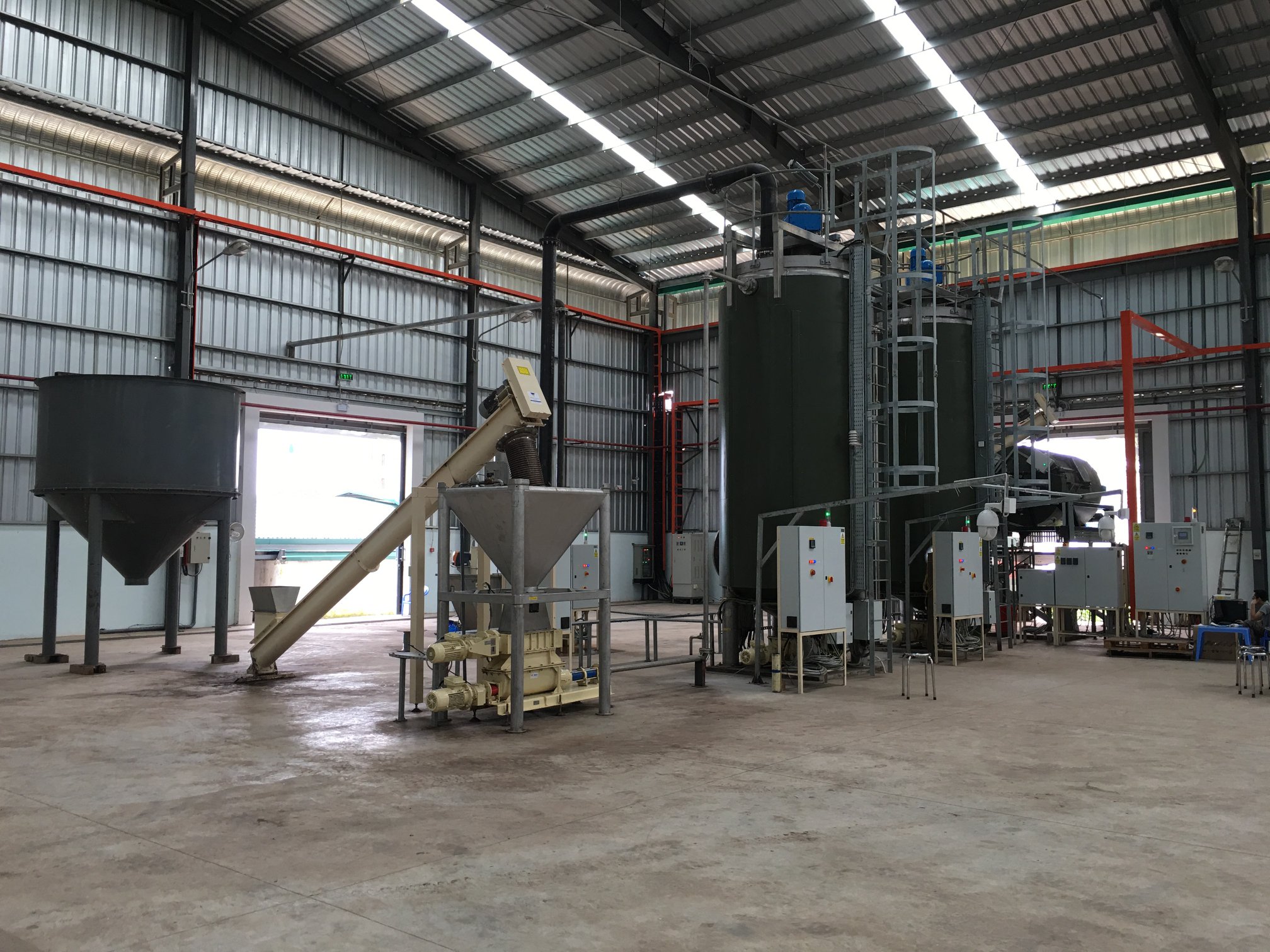

Customised feed system to suit your needs. Shredder capability to reduce input to 12mm diameter. Pre-treatment tank - dual purpose of acting as a buffer tank whilst fermenting the feedstock into a slurry. Rotary drum that digests, dries and granulates material into fertiliser pellets. Wet scrubber odour control system. Microwave unit to sterilise output fertiliser. Screw conveyor unit to discharge fertiliser into a collection tray. Easy to use control panel that monitors and stores data to ensure the system runs smoothly. Online feature means you can monitor the system through your mobile, tablet or laptop and receive automatic updates.
Manage a busy kitchen? No problem, we can install a chute that feeds the system from your waste source! Your staff will not have to waste time emptying bins, simply place the material in the chute at the point of generation!
| ‘ecoHERO’ Model | 1000A | 1500A | 2500A | 3500A |
|---|---|---|---|---|
| Throughput (t/wk) | 7.0 | 10.5 | 17.5 | 24.5 |
| Number of digesters | 1 | 1 | 1 | 1 |
| Integrated shredder | Y | Y | Y | Y |
| PT tank | Y | Y | Y | Y |
| Macirator Pump | Y | Y | Y | Y |
| Microwave | Y | Y | Y | Y |
| Fertiliser Big Bags | N | N | Y | Y |
| Fertiliser Bins | Y | Y | N | N |
| Control panel | Y | Y | Y | Y |
| Remote monitoring | Y | Y | Y | Y |
| Data logger | Y | Y | Y | Y |
| Interlocks | Y | Y | Y | Y |
| Odour neutraliser | Carbon Filter | Wet scrubber | Wet scrubber | Wet scrubber |
| Avg. Power | 4KW | 6KW | 10KW | 12KW |
| Power Rating | 415V/32A | 415V/32A | 415V/32A | 415V/32A |
| Power Type* | 3 phase | 3 phase | 3 phase | 3 phase |
| Dimensions (approx. m) | 4L x 2.5W x 2.5H | 5L x 3W x 2.5H | 5.5L x 5.5W x 3.5H | 6L x 6W x 3.5H |
| Weight (tonne) | 2 | 2.5 | 3.5 | 4 |
Note: Figures are a guide only based on average solid throughput. Please contact us for more information.
* We can supply to other power ratings and CSA Approved control pannels, please contact us for more details.
