The ‘ecoREDUCER’ is a fully integrated waste management system that focuses upon the reduction of both the weight and volume of mixed waste. The waste is dried, compressed and pelletised before being discharged. Significantly, the system can be fed with any combination of waste, be it food waste, packaging, clinical waste or a mixture. Category 1 & 2 waste can also be processed and reduced in a safe and economical fashion.
What emerges from the ‘ecoREDUCER’ is typically reduced in volume and weight by 70% and 60% respectively. This makes the handling, storage and transportation of the output significantly easier and cheaper. Furthermore, the output has the potential to be used as a biomass fuel.

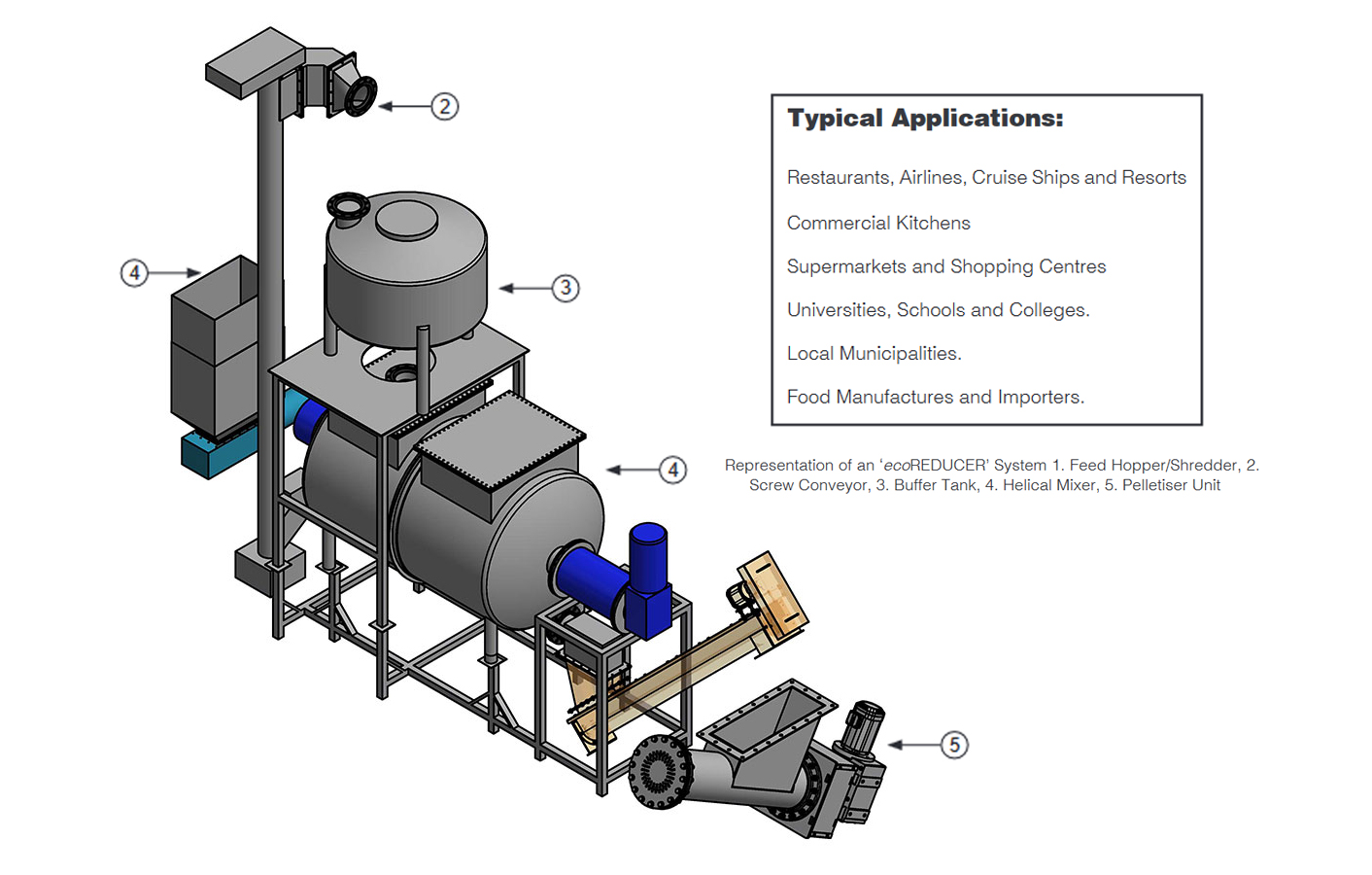

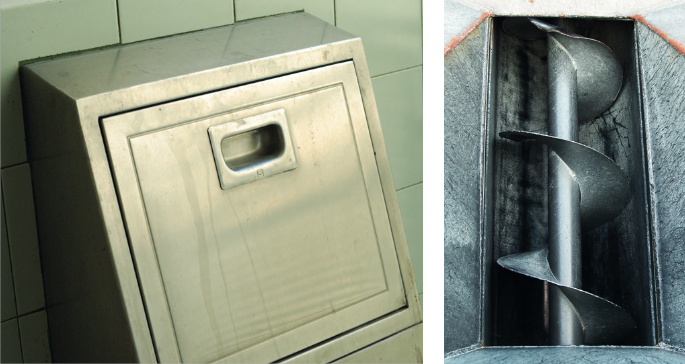

The system is fed through a hopper, which has an integrated shredder system that reduces the material size to roughly 12mm. It is then sanitised before being dried and compressed up to a 12:1 ratio in a reduction drying chamber. Once the process has ended, the output is discharged through a screw conveyor.
You can use the ‘ecoREDUCER’ to simply make savings on waste handling, or you can sell its output as a biomass fuel. Often, mixed waste containing foods has a high calorific content and once dried is highly combustible, making it an ideal sustainable source of heat and energy that can provide an additional revenue stream for your business!
Customisable feed chute, which can feed the system from anywhere on your premises. Integrated Shredder to reduce feedstock volume. Material separation and washing system. Pre-treatment tank to act as buffer unit./li>
Helical mixer where input is digested, reduced and dried. Microwave unit to stabilize material. Discharge unit and pelletiser. Easy to use control panel that monitors and stores data to ensure the system runs smoothly. Online feature means you can monitor the system through your mobile, tablet or laptop and receive automatic updates.
The ‘ecoREDUCER’ can be fed an impressive range of materials, in any combination, including but not limited to:
Contaminated Food Waste Cardboard & Paper Plastics Category 1 & 2 Waste Clinical WasteFor full details of the feedstocks compatible with the ‘ecoREDUCER’ please contact us.
| ‘ecoREUCER’ Model | ER-4000 | ER-10K | ER-20K | ER-30K | ER-50K |
|---|---|---|---|---|---|
| Throughput (litres/day) | 4000 | 10,000 | 20,000 | 30,000 | 50,000 |
| Feed Compactor | Y | Y | Y | Y | Y |
| Integrated shredder | Y | Y | Y | Y | Y |
| Buffer Tank | Y | Y | Y | Y | Y |
| Screw Conveyor | 2 | 2 | 3 | 3 | 4 |
| Microwave | Y | Y | Y | Y | Y |
| Pelletiser* | Y | Y | Y | Y | Y |
| Control panel | Y | Y | Y | Y | Y |
| Data logger | Y | Y | Y | Y | Y |
| Remote monitoring | Y | Y | Y | Y | Y |
| Interlocks | Y | Y | Y | Y | Y |
| Odour neutraliser | Wet scrubber | Wet scrubber | Wet scrubber | Wet scrubber | Wet scrubber |
| Avg. Power | 15kW | 18kW | 22kW | 30kW | 45kW |
| Power Rating | 415V/63A | 415V/63A | 415V/63A | 415V/63A | 415V/100A |
| Power Type** | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase |
| Dimensions (approx. m) | 3.5L x 2.2W x 2.5H | 4.8L x 2.2W x 3H | 5.5L x 2.2W x 3H | 6L x 2.2W x 3H | 6L x 4.5W x 3H |
| Weight (tonne) | 5.5 | 9 | 11 | 14 | 12 |
Note: Figures are a guide only based on average solid throughput. Please contact us for more information.
* Pelletising could be affected by feed material type.
** We can supply to other power ratings and CSA Approved control pannels, please contact us for more details
